Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | RL86A |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 PCS Per Month |
| Operating Frequency: | 13.56MHz | Compatible Protocol: | ISO15693, ISO14443A/B And ISO18000-3M3 |
|---|---|---|---|
| Communicate Interface: | USB / RS232 | Reading Distance: | ISO15693, 25cm |
| Size: | 150 X 150 Mm | Weight: | 75 G |
| Highlight: | access control proximity reader,wall mount rfid reader |
||

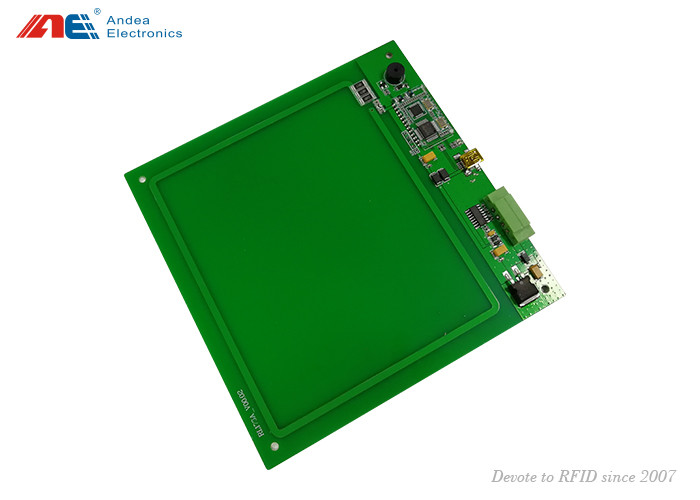

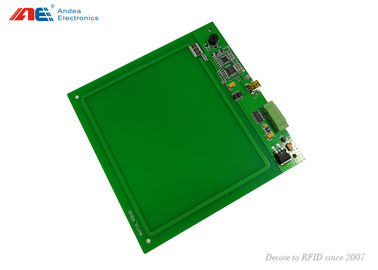

ISO15693 ISO14443A/B and ISO18000-3M3 PCB Embedded I CODE SLI / SLIX / SLIX2 / Mifare RFID Reader
Product Introduction:
RL86A supports ISO15693, ISO14443A/B and ISO18000-3M3 protocols, also with USB and RS232 communication interface for choice. With its perfect size and four fixed screw holes, it is easy to be embedded in many kinds of machine . An intelligent anti-collision function enables several tags to operate in the field simultaneously. The anti-collision algorithm selects each tag individually and ensures that the execution of a transaction with a selected tag is performed correctly without data corruption resulting from other tags in the field.
Technical Specification :
| Model | RL86A |
| Operating Frequency | 13.56MHz |
| Compatible Protocol | ISO15693, ISO14443 and ISO18000-3M3 |
| Communicate Interface | USB / RS232 |
| Reading Distance | ISO15693, 25 cm |
| Supported Tags |
|
| Voltage | 5V DC (USB) / 12VDC |
| Dimensions | 150 x 150 mm |
| Weight | 75 g |
Typical application :
