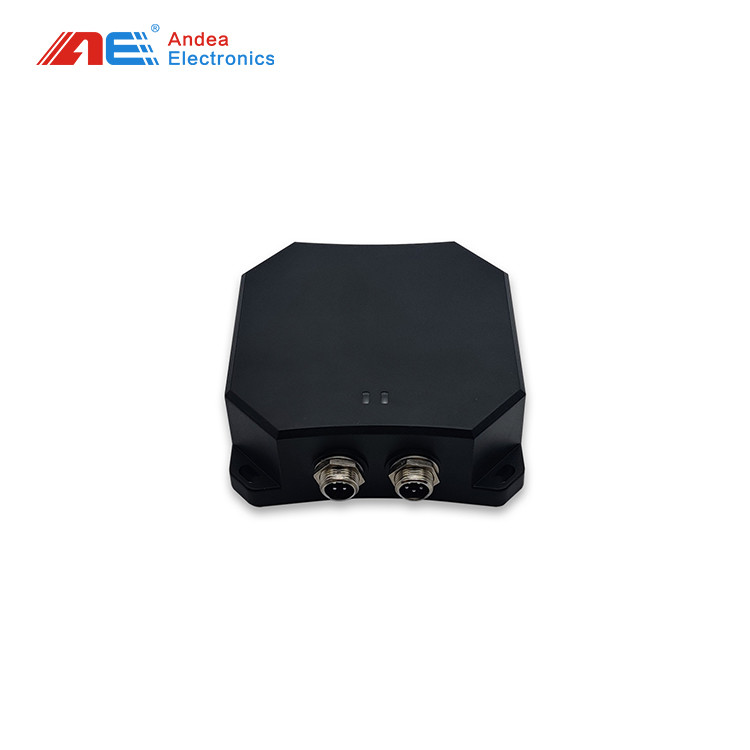

24V DC Industrial RFID Reader Modbus RS485 Communication For Data Acquisition IP67

ISO15693 Industrial rfid reader Modbus RS485 Communication for data acquisition IP67



Quick detail of ISO15693 Industrial rfid reader:


• Support Standard:ISO 15693,ISO 14443 TypeA/B；
• Communication mode:Modbus RS485；
• Fixed type:4*M4 screw；
• Waterproof/ dustproof:IP67；
• Communication Interface:M12A(4pin M) + M12A(5pin M)；



---

  Specification of ISO15693 Industrial rfid reader:


Specification
Support Standard	ISO 15693,ISO 14443 TypeA/B
Operating Frequency	13.56MHz
Reading Range	0-50mm
Communication mode	Modbus RS485
Communication rate	9600~115200 bit/s
Power Supply	24V DC(9-30V)
Current	<0.04A@24V DC
Physical parameters
Dimension	100*100*35mm
Weight	160g
Fixed type	4*M4 screw
Housing Material	ABS and Metal plate
Color	Black
Indicator light	LED*2

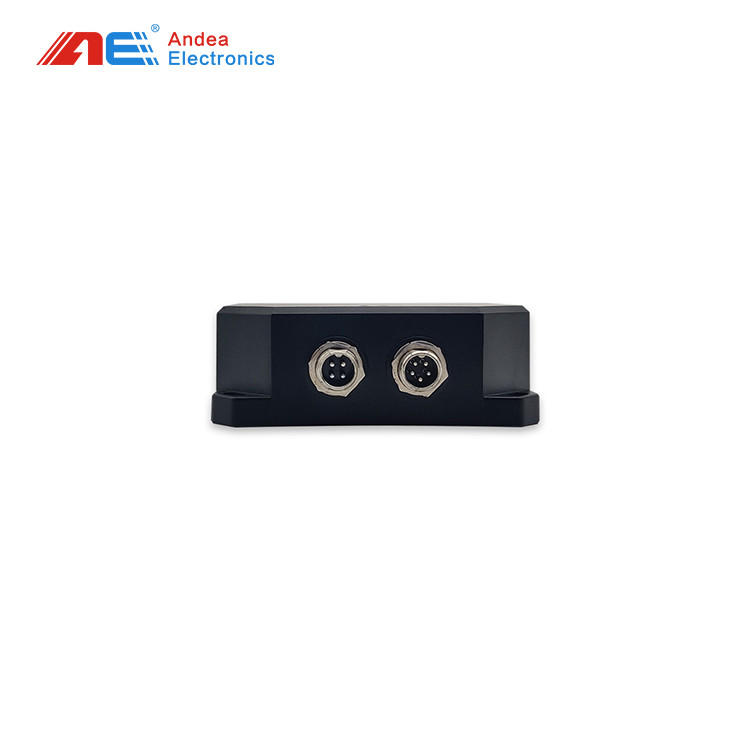

Interface	M12A(4pin M) + M12A(5pin M)
Application environment
Working Temperature	-40℃～+85℃
Humidity	5%～95%RH
Waterproof/dustproof	IP67



---

Feature of Modbus TCP Communication Fixed Reader:



With high sensitive read-write performance.



Support Modbus communication mode,Convenience to interface with various PLCs.



With IP67 protection grade can adapt to harsh environments.



Integrated design,easy to installation and deployment.



Built-in-one design,have strong anti-interference ability to EMC.



---

Advantages of ISO15693 Industrial rfid reader:



Easy to use



Fast data transfer



Small size



Non expensive



---



ISO15693 Industrial rfid reader Application:



Logistics Automation



The combination of decentralized solutions for I/O, safety, identification and control with IP67 rating makes us be your ideal partner for automating logistics processes.



Power Battery Assembly



Install the reader at the RFID collection point, and the on-line station collection point reads the RFID tag in the material box to obtain the information of slots in the material box (each slot is equipped with a cell with different voltage), The voltage value/grade of the test cell is written into the material box RFID tag at the test station of the voltage cell. When the cell is classified, read the RFID tag information of the material box and connect the robot in real time to automaticaly put the cell into the corresponding cell transport track. After the robot takes down the cell with different gear from the transport track and puts them into the same material box it will write the cell gear information into the RFID tag of the material box. Through the operation of each station on the RFID tag, a series of processes such as cell division, transportation, encapsulation, and assembly are completed in the process of cell assembly.



Intelligent Application of Home Appliance Manufacturing Process



Through RFID data acquisition technology (By adding RFID tags on the product/tooling board and deploying RFID readers on the workstation),the unmanned,automatic and real-time identification of single-item products on the production line is realized.

Using real-time collected product information,complete error prevention of mixed flow production materials,real-time push of process guidance,automatic diversion of defective products,automatic generation of quality reports,product traceability management,mixed flow line alarms,and equipment automation docking.



---

Dimension Drawing(mm):




---

Installation Instruction:



This reader use four M4 screws to fixing. According to the installation environment of the site,we can support bracket to install.If there has Metal plate beside the product,please make sure that the distance between reader and Metal plate has more than 15mm,or it will influence the performance of reading and writing.





When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.



---
