Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | RD201-U |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Compatible Protocols: | ISO15693 And ISO18000-3M1 | RF Power: | 0.25-1.5W |
|---|---|---|---|
| Reading Range: | 65cm | Antenna Interface: | SMA |
| Dimension: | 136*105*25mm | Weight: | 280g |
| Highlight: | rfid antenna reader,square rfid reader |
||
Product Introduction:

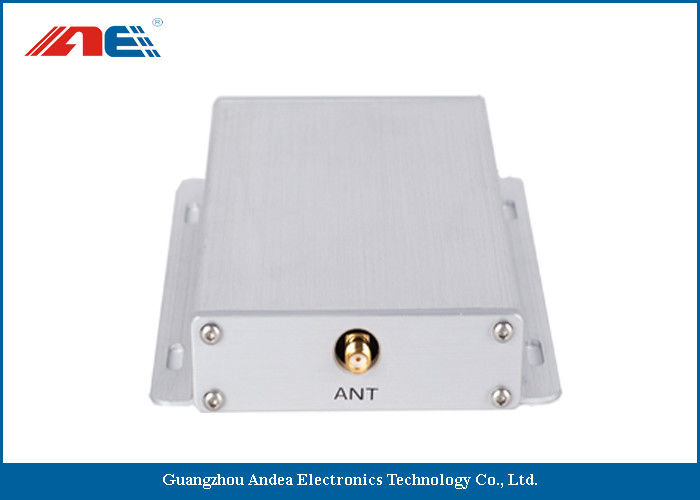

RD201-U HF medium power stationary RFID reader is compatible with ISO 15693 and ISO 18000-3 protocols. Radio frequency power of this reader is adjustable from 0.25W to 1.5W according to the application files. Its high identification rate and advand anti-collision algorithm allows fast processing, reading speed is up to 50 Pieces per second. USB communication interface is easy for connection with other device. There are host mode and scan mode two work modes for choice accoding to your needs.
Product Features:
| Technical Specification | |
| Model | RD201-U |
| Operating Frequency | 13.56 MHz |
| Compatible Protocols | ISO 15693 and ISO 18000-3M1 |
| RF Power | 0.25~1.5W |
| Antenna Interface | SMA |
| Communication Interface | USB |
| Working Voltage | DC 12V |
| Max Power Consumption | 2.8W |
| EMI Detection | Support |
| Housing Material | Aluminum Alloy |
| Dimension | 136*105*25mm |
| Weight | 280g |
Product Application:
It can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.
