| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | PBYTJ312 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Working Frequency: | 13.56 MHz | Support Protocols: | ISO/IEC 15693 And ISO/IEC 18000-3M1 |
|---|---|---|---|
| Communication Interface: | RS232 | Reading Rang: | 40cm |
| Reading Speed: | Up To 50pcs / Sec | RF Power: | 0.25~1.5W (adjustable) |
| Working Power: | DC 12V | Housing Material: | PCB And Metal Plate |
| Dimensions: | 380*280*28.5mm | ||
| Highlight: | ISO15693 Embedded RFID Reader,Library Embedded RFID Reader,Self Service Kiosk Embedded RFID Reader |
||

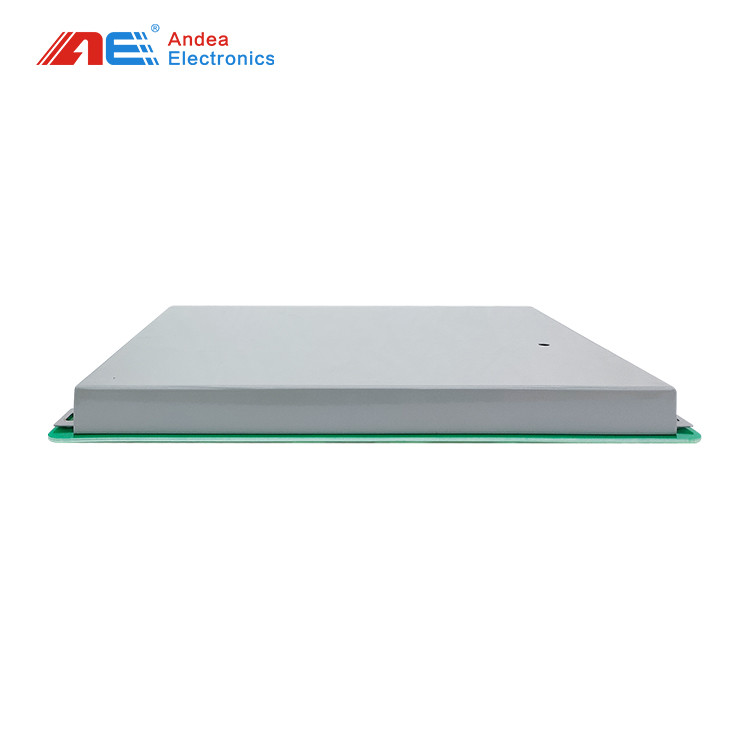

Library Selfservice KIOSK HF RFID Reader ISO15693 Embedded rfid reader
Product Introduction:
If you are looking for an embedded all-in-one reader that can be installed in the self-service lending and returning device, this product will be the most suitable product after you compare. This series of products developed based on users' needs are also applied to our library self-service lending and returning integrated products. We recommend them based on applications. We know that the performance of the products can meet your needs. The product is wrapped by a metal plate, and the bottom is a PCB material with an antenna. Even in the metal shell, the reading ability will not be affected. The anti metal design is adopted, which is not affected by the surrounding metal and supports the interference detection of the surrounding environment.
Product Features:
Metal shielding design, can be embedded in the environment of five-sided metal, the performance is not affected;
All-in-one design, integrated with read/write module and antenna
Support noise detection, be able to detect whether the environment has interference;
Support host and scan working modes, being set by software tool.
| Technical Specification | ||
| Compatible Protocol | ISO 15693 and ISO 18000-3M1 | |
| Operating Frequency | 13.56 MHz | |
| RF Power | 0.25-1.5W | |
| Reading Range | 40cm (standard RFID card) | |
| Reading Speed | Up to 50 pcs/sec | |
| Communication Interface | RS232 | |
| Anti-collision Algorithm | Support | |
| Work Mode | Host Mode and Scan Mode | |
| Power Consumption | 3.5W | |
| Working Environment | ||
| Physical Parameters | ||
| Dimension | 380*280*28.5mm | |
Product Application:
RFID library management, archives management, etc.
